Instrumentation complex purpose

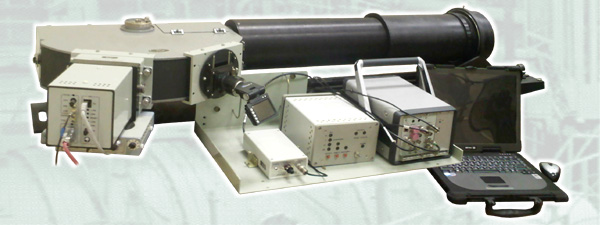

СКПФ254 instrumentation complex is developed based on СФР-2М high-speed mirror scanning camera for multichannel measurements of time intervals between a trigger signal and the time of radiation pulse generation, and for detecting other fast processes accompanied by light emission.
The recorded information in the form of luminous object images is recorded on a CCD-matrix. The results obtained are in digital form, which makes it possible to automate data recording and processing.
СКПФ254 software enables to control the complex remotely via a PC, and perform prompt mathematical processing of scanned object images to determine temporal characteristics of the process, and give the acquired information in graphical and tabular form.
СКПФ254 has the status of "Special-purpose instrument".
Instrumentation complex configuration
| Identification | Name | Q-ty | Purpose |
| СКПФ254.01.000 | Detection device: | 1 | Detection of fast processes involving light emission, and transmission of information to PC |
| СФЭР15 | Electro-optical shutter | 1 | |
| СПМ20 | Recorder | 1 | |
| СКПФ254.02.000 | Data converting device | 1 | Conversion of electrical signals from two independent channels, and forming concurrent and delayed electrical signals |
| СГС98 | Optical signal generator | 1 | Generation, using mirror scanning device, of calibrated time stamps and a reference mark at the beginning of the process on the photosensitive surface of detection device |
| ИМТ5 mirror scan device | 1 | Receiving light emission accompanying fast processes, imaging of emitting object on photosensitive surface of detection device, and image dissection in time using rotating mirror | |
| Software | 1 | Preparing the equipment for measurement, controlling measurement process, collection, storage and processing of recorded information |
Main specifications
- Dimensions of photosensitive surface of detection device: 60 (L) x 40 (H) mm
- Measurement error of time intervals in the range from 0.1 to 100 µs not more than 40 ns;
- The complex is powered from (220 ± 22) VAC, (50 ± 1) Hz mains, power consumption - no more than 900 W;
- Detected emission range 450 to 850 nm.
Overall dimensions of the complex on a stand with ИМТ5 mirror scanning device:
- length - no more than 1600 mm;
- width - no more than 800 mm;
- height - no more than 1100 mm.
